Visual System Segmentation

This document states how to use the example MIS/deployments/visual-system.

1. Prerequisites

1.1. Prepare dataset

Place your dataset folder in here(MIS/deployments/visual-system) and name it as data.
Or you may directly create a link to the folder like this.

ln -s YOUR_DATASET data

1.2. Update the MIS & MIDP packages

Update MIS
```
cd PATH_OF_MIS
git pull
```

Update MIDP

pip install -U git+https://github.com/YuanYuYuan/MIDP

1.3. Set the data list

1.3.1. For training/validation, please modify training/data_list.yaml.

amount:
  test: 11
  total: 48
  train: 28
  valid: 9
list:                   (1)
  train:
  - 0522c0002
      ⋮
  valid:
  - 0522c0001
      ⋮
loader:
  data_dir: ../data
  name: NRRDLoader
  roi_map:
    OpticNerve_L: 1
    OpticNerve_R: 2
    Chiasm: 3
  spacing: 1
  resample: false      (2)

1	Fill in the data list to be evaluated with the name of each case.
2	The default spacing of this model is 1mm. If your dataset hasn’t been resampled into this spacing, you may toggle this option. However, for the training efficiency, the recommended way is to preprocess the dataset with this.

For evaluation, please modify evaluation/data_list.yaml.

list:
- 0522c0001            (1)
    ⋮
loader:
  data_dir: ../data
  name: NRRDLoader
  roi_map:
    OpticNerve_L: 1
    OpticNerve_R: 2
    Chiasm: 3
  spacing: 1
  resample: false      (2)

1	Fill in the data list to be evaluated with the name of each case.
2	The default spacing of this model is 1mm. If your dataset hasn’t been resampled into this spacing, you may toggle this option. However, for the training efficiency, the recommended way is to preprocess the dataset with this.

Note that you can split the dataset to training/validation/testing three parts. Train the model on training data, choose the best model in checkpoints according to the performance on the validation data, and finally evaluate the performance on the testing data.

You can use the tools from MIDP to generate the data list. Please see here for the details.

2. Usage

2.1. Download the trained model

make download_model

It will download a model checkpoint which achieved the performance as below.

Table 1. Validation performance on PDDCA dataset 1mm with center_crop: 256, stride size: 48
Left Optic Nerve	Right Optic Nerve	Chiasm	Average
0.5777	0.5987	0.3251	0.5005

2.2. Training

Continue training with the trained model.

make train

There will be a gap between the validation score and the evaluation one since the condition is harder(the model makes prediction without considering threshold).

If you want to use some model checkpoints to resume training, please specify the checkpoint path in the training config.

training/training.yaml

⋮
models:
  seg:
    model_config: '../models/seg_vae_reg.json5'
    checkpoint: '../model_checkpoint.pt' (1)
  dis:
    model_config: '../models/dis.json5'
    # checkpoint: 'dis.pt'
⋮

1	Modify here.

2.3. Evaluation

Directly evaluate the performance with the trained model checkpoint.

make evaluate

Evaluate the performance with a newly trained checkpoint.

make evaluate CKPT=training/_ckpts/SOME_BETTER_CHECKPOINT

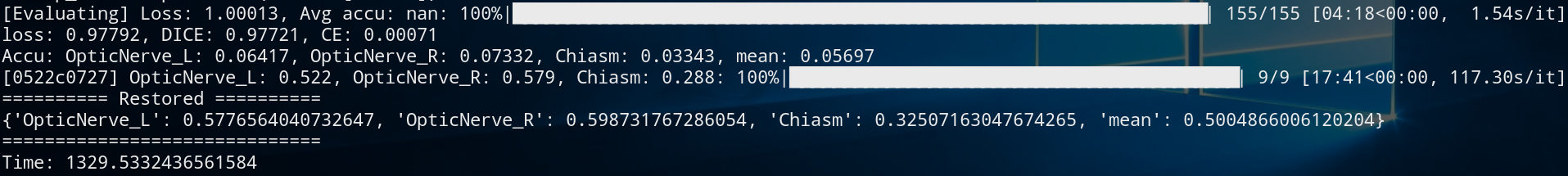

Figure 1. Evaluating

One can observe the gap between the score of each batch(before reconstruction) and the evaluation one(after reconstruction, true dice score enclosed in ===== Restored =====).
Since there are additional processings like applying threshold , averaging the overlapping predictions, the performance will be better.

The output result will be exported as evaluation/score.json.

[Result]

score.json

{
  "0522c0001": {
    "OpticNerve_L": 0.60801393728223,
    "OpticNerve_R": 0.6426484907497566,
    "Chiasm": 0.671850699844479
  },
  "0522c0014": {
    "OpticNerve_L": 0.5075862068965518,
    "OpticNerve_R": 0.6363636363636364,
    "Chiasm": 0.26305220883534136
  },
  "0522c0195": {
    "OpticNerve_L": 0.505338078291815,
    "OpticNerve_R": 0.6531468531468532,
    "Chiasm": 0.5344563552833078
  },
  "0522c0248": {
    "OpticNerve_L": 0.5934256055363322,
    "OpticNerve_R": 0.6904549509366636,
    "Chiasm": 0.27712609970674484
  },
  "0522c0330": {
    "OpticNerve_L": 0.426197458455523,
    "OpticNerve_R": 0.3314527503526093,
    "Chiasm": 0.21585482330468003
  },
  "0522c0555": {
    "OpticNerve_L": 0.7164444444444444,
    "OpticNerve_R": 0.6149870801033591,
    "Chiasm": 0.09828571428571428
  },
  "0522c0576": {
    "OpticNerve_L": 0.6567796610169492,
    "OpticNerve_R": 0.6638078902229846,
    "Chiasm": 0.4628099173553719
  },
  "0522c0667": {
    "OpticNerve_L": 0.6633165829145728,
    "OpticNerve_R": 0.576271186440678,
    "Chiasm": 0.11376146788990826
  },
  "0522c0727": {
    "OpticNerve_L": 0.521805661820964,
    "OpticNerve_R": 0.5794530672579453,
    "Chiasm": 0.2884473877851361
  }
}

Besides making inference, save the predictions and store them into NRRD.

make predict

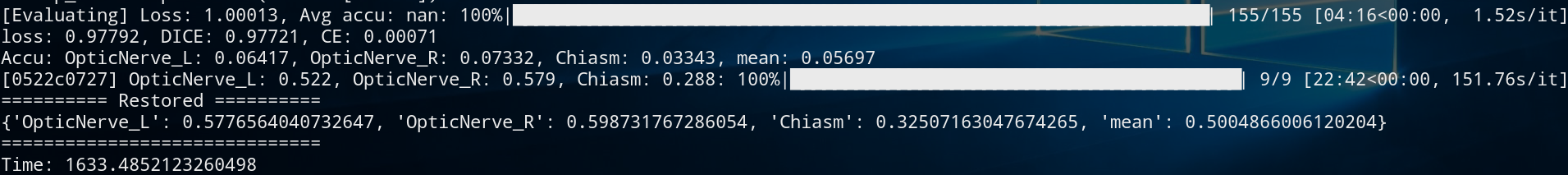

Figure 2. Predicting

The outputs will be stored in the folder evaluation/outputs.

The process may be slow due to resampling twice before/after inference. And the current workflow will store the predictions of all cases and then do reconstruction, the memory usage might be large.
